Airing Of Grievances

February 23rd, 2023

When a new feature is added, they sometimes feel so complete that we need not think about them again. That is until those amazing features don’t work like we expect. This post covers some gameplay elements that have caused us agony and suffering to implement and improve.

Concave vs Convex Movement

In our game each job that a unit can perform has an amount of effort assigned to it. For example when harvesting minerals, the effort for that job is the amount of time it takes to complete mining a chunk of the minerals. For movement, the effort is the distance the unit must travel. When the unit performs the job they can keep track of their job progress by looking at the work completed and comparing it to the amount of effort required. For movement this can be computed as:

job progress = current distance from job origin / total distance to move

The result is a value between zero and one. Zero means the job has not started and one means the job is complete.

Unit movement was working great until we began adding buildings that units can enter. Before the addition of buildings, units would move purely around obstacles that are convex in shape, like trees and large rocks. The units’ job progress was computed accurately and they would move where required. However, when attempting to move a unit into one of the newly added buildings, which happen to be more of a concave shape rather than convex, they would often complete their job far from the goal location. We checked that their calculated path was accurate — it was. We checked to ensure that the units were able to fit inside doors and gates — they could. The issue of movement jobs completing early was inconsistent as well; sometimes the job didn’t occur at all.

After much time was spent watching people walk back and forth, the solution was realized. When calculating the amount of effort for a movement job, we were using the direct distance from the start to finish. This worked fine for convex shapes but resulted in erroneous job completion when moving into a convex building. In the diagrams below, we show both movement situations. The solid lines are the computed paths to the destinations, and the dotted lines are the effort distances:

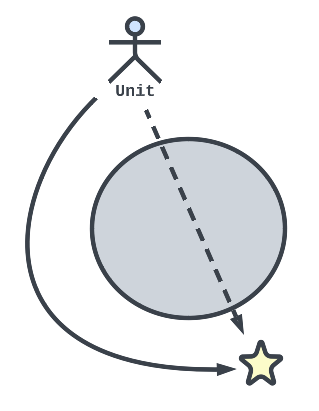

Convex movement with a functional effort distance

Convex movement with a functional effort distance

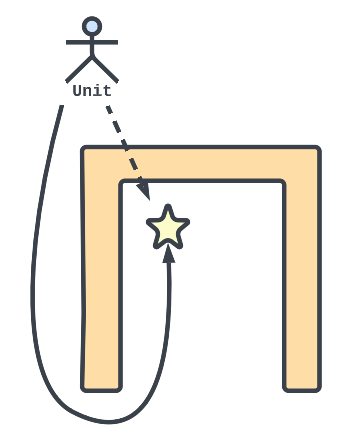

Concave movement with an incorrect effort distance

Concave movement with an incorrect effort distance

As we can see in the concave movement case, the effort distance is much shorter than the actual path. This was causing the unit to suddenly stop moving in what appeared to be the middle of a movement job. It would happen if the unit came too close to the destination, even if there was a wall in between; the distance between the unit and destination was within an acceptable range to incorrectly complete the job. To solve this issue, we now calculate the effort for movement jobs based on the length of the desired movement path, not the direct distance to the destination.

Centralized Vision Management

A core functionality in our game is that units have both a vision and attack range. These ranges are represented by two spheres, centered on a unit’s position, that detect when friend, foe or resource come within their bounds. This system worked well until recently, when we were doing some stress testing with many units on the screen at once.

We use the Unreal profiler when stress testing, which allows us to see what’s involved in computing each frame of animation/gameplay. There are two main threads of execution: the render thread, which is responsible for preparing all visuals and their associated computations before being sent to the graphics card, and the game thread, which computes all gameplay logic. Improving the performance of the render thread was fairly easy. We worked to ensure that shadows were only being cast by things that would be visible or appealing and removed shadows for other elements (e.g. the grass does not cast shadows as they would be too small to appreciate). We also added lots of graphics scalability settings, allowing players to increase or reduce visual quality so that the game runs smoothly on their computer.

When investigating the game thread, we noticed that the most expensive thing in regards to the amount of time needed to compute each frame was the vision and attack range spheres for each unit. The two spheres were fairly performant when the game started, but as soon as you moved any of the units they took up the vast majority of the game thread’s computing time. The issue stemmed from the fact that the spheres needed to update their currently overlapped objects in each frame. They would first check all things within their radius, then check only the object types they were supposed to watch for, and then finally add the currently visible or attackable objects to the unit’s state. In a previous blog post , we talked about how this event driven vision and attack range system was so amazing. As it turns out, it was less than amazing, perhaps even poor.

Addison had been reading development blogs by other game developers and learned of the idea where a centralized entity would check ranges instead of each individual unit. This concept seemed strange, but we decided to give it a try. The vision and attack range spheres were discarded for each unit, and we created a single actor that is responsible for keeping each unit up to date. Units would register themselves upon being created and no longer need to worry about updating their own vision and attack ranges. This new actor, known as the Sensory Manager, updates every 200ms. Each update performs either vision range checks for every registered unit, or attack range checks (meaning vision and attack ranges are each updated every 400ms). This flip flopping between checks proved to be an enormous improvement over our previous method using the two spheres. We were even able to add a line-of-sight check, which was previously missing, so now vision and attack checks are fully accurate.

Here are some metrics showing how long the vision and attack range systems took to compute on the game thread:

Old system using two overlap spheres:

  • 3 units: average of 0.525ms
  • 30 units: average of 12.92ms

New system using the Sensory Manager:

  • 3 units: average of 0.063ms
  • 30 units: average of 0.865ms

These improvements unlocked a huge amount of performance on the game thread and will allow more players to enjoy our game despite not having the strongest computer. A true victory 🎉

Global Invalidation and Other Nice Things

Over the course of developing our game, we’ve taken a bit of a “wait and see” approach regarding performance. The thing that slows down the game is never what we think it will be, so we often will implement a feature in a clear way with minimal consideration for performance. After the massive improvements from the new vision and attack range system, the next thing slowing down the game thread was the user interface.

There were a few things causing the UI to perform poorly. One thing was that we were updating the contents of the resource processing queue every frame. To fix this, we changed it so that we only update the queue’s contents when there is an actual change in its contents, such as a new resource being added or a resource’s processing reaching completion. This was a simple fix that solved our most egregious UI performance ruiner. After improving the resource queue, we noticed a couple of other areas that were getting updated too often and minimized those as well.

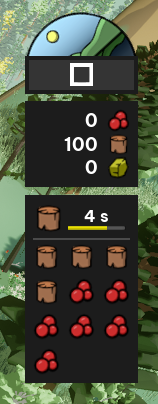

The resource queue, currently processing wood

The resource queue, currently processing wood

The UI was fairly performant at this point, but still had a rather large “tick time”. This tick time reflected the effort required to update the UI for every frame of animation, meaning the effort required to update the UI beyond the updates that were being performed intentionally by us. After doing some research, we learned that the UI will completely re-render itself on every frame unless specific areas of the UI have been configured to not update until required. After a few failed attempts of trying to prevent certain components from being re-rendered every frame, we came across an interesting post by the developers of Valorant. The Unreal team has created a system called Global Invalidation, which attempts to figure out which parts of the UI to re-render for you. Much like the Valorant team, we had to do some tweaking as the Global Invalidation system does not know of your individual use cases, but overall the improvements were fantastic. UI rendering speed quickly became the least of our worries thanks to Global Invalidation, and we were ready to tackle another challenge.

We had improved the vision and attack range system, as well as the UI rendering performance; the next performance problem for the game thread was our use of Niagara effects. Niagara is used to create fun and interesting particle effects using simple physics primitives that can be combined to produce complex and realistic visuals. Since our game is not very realistic in appearance, our Niagara systems are fairly simple. In the opening scene of our game there is a city engulfed in flames which the player and their team are escaping from. This burning city uses a particular Niagara fire effect which was slowing down our game thread. The solution was simple: move the particle simulation from the game thread to the render thread. Since the effect doesn’t use collisions or any logic at all, we don’t need to run things on the CPU. We can fully relegate the smoke and flames to the players’ trusty GPU.

The Niagara effect used for the Blaster’s Fire Bomb skill

The Niagara effect used for the Blaster’s Fire Bomb skill

It feels good to vent. We completed these performance improvements just before implementing the next area in our game, so we can now take a break from stressing about milliseconds and can focus on creating more fun.
