This week’s post provides a high-level look at how parts of our game are structured.


The player’s camera is one of the more complex entities in the game. It gathers the data from the characters for display in the UI, interprets the players keyboard and mouse input, assigns tasks to the characters based on the current context, and acts as the intermediary for any interactions between the caravan, characters, and user interface.

When selecting characters, the camera resizes an invisible rectangle based on the mouse cursor position. When the rectangle overlaps a character, the character becomes selected, and when the rectangle shrinks so that a character no longer overlaps, the character is deselected. A material is used to make the invisible rectangle visible only where it intersects the landscape and scenery. Due to the 3D nature of the Selection Rectangle, this visual indicator works well with various elevations as well.

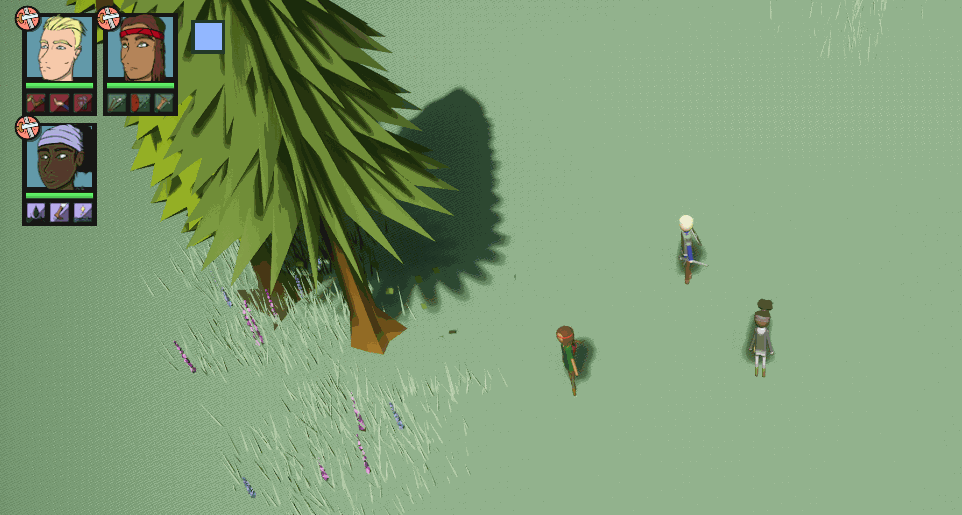

The Player using the Selection Rectangle to control their characters

Using the Selection Rectangle


The caravan is the focal point of the player’s experience. Players will rescue wise Elders lost in the wilderness and lead them back to the caravan. After being rescued, the Elders will provide bonuses, such as increasing the speed that the caravan will process resources and unlocking new craftable resources. When characters are not off on adventures or gathering resources, they can walk alongside the caravan to guard it.


Over the course of the game, the player will guide their team of adventurers through numerous landscapes and biomes . We started building this game before the release of Unreal’s World Composition tools, so we’ve opted to not use this feature and will be using streaming volumes to load and unload game content instead.

Each of the biomes will have a parent level that contains the landscape component and environmental sounds, as well as the road spline(s) that runs through it. The actual contents of the biome (foliage, wildlife, resources, buildings, enemies, non-player characters, intriguing mysteries, etc.) are loaded by sub-levels.

As the player’s caravan moves forward through a biome, each sub-level will be loaded. Since the caravan can only move forwards, the previous sub-levels can be unloaded once the caravan is far enough away.

The caravan is surrounded by an invisible volume that acts as the trigger to load in a new level. This volume is larger than the camera’s range, ensuring that the level is loaded before the camera reaches it and the player will never see the next level’s contents loading in.

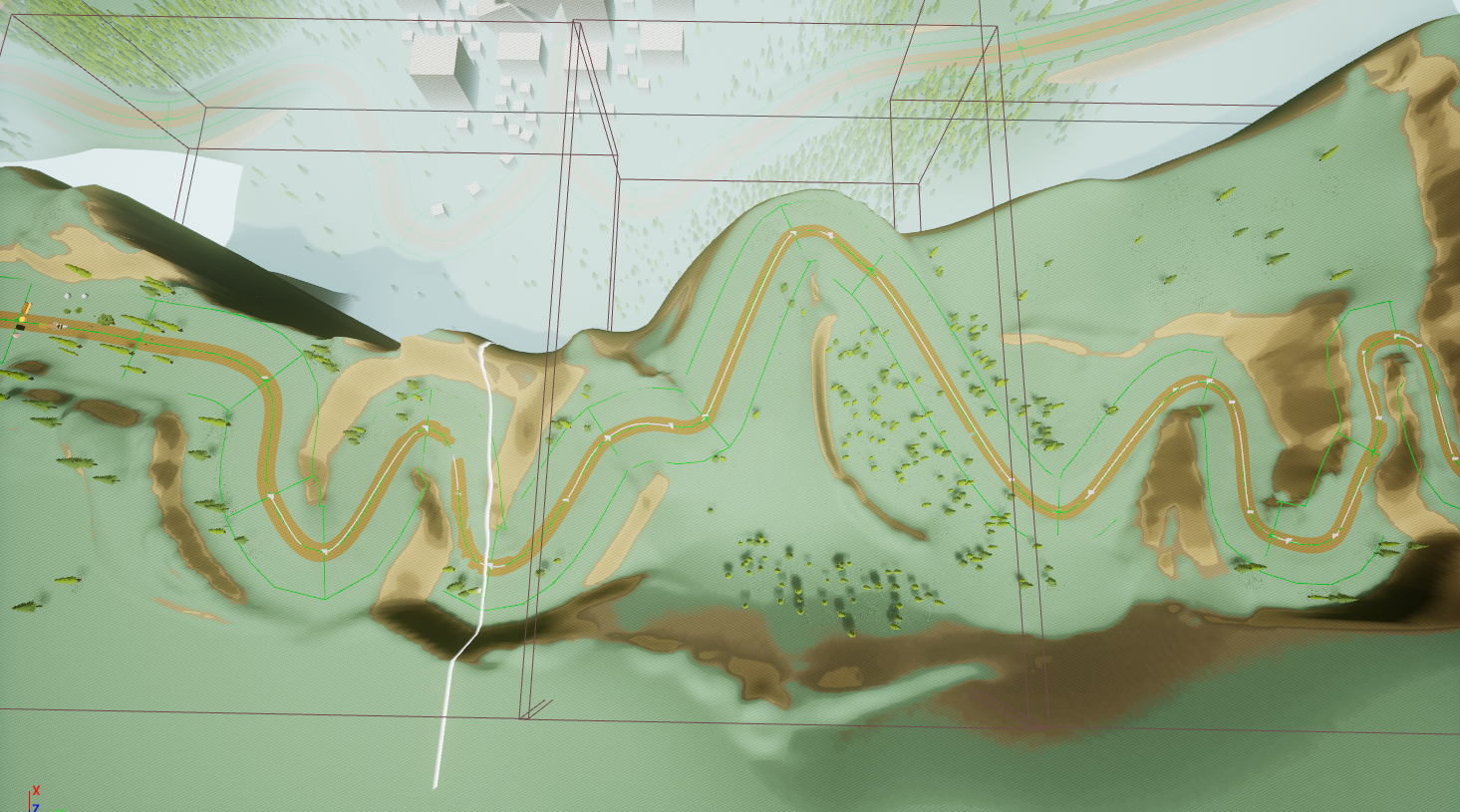

A vast level divided into sub-levels

A sample level divided into sub-levels


We use Unreal’s Pawn type for each of the humanoid characters in the game. These little beings each have their own artificial intelligence (AI) system that dictates how they behave. A character’s AI consumes information about their surroundings via concentric spheres that detect when other characters, resources, etc. are within their boundaries. There are two spheres in use: vision range and attack range. When something comes within the bounds of one of these spheres, a character updates their internal state regarding their surroundings and their AI can then make informed decisions about the best course of action. Early in the development process, we decided not to use the vision system that Unreal provides as it uses more system resources than our overlapping spheres. The Unreal vision system is quite robust, but we realized that we did not need the constant visual range updates and granularity that it provides. Our solution, while less fully featured, scales much better for our needs since there will be a large number of characters on screen.

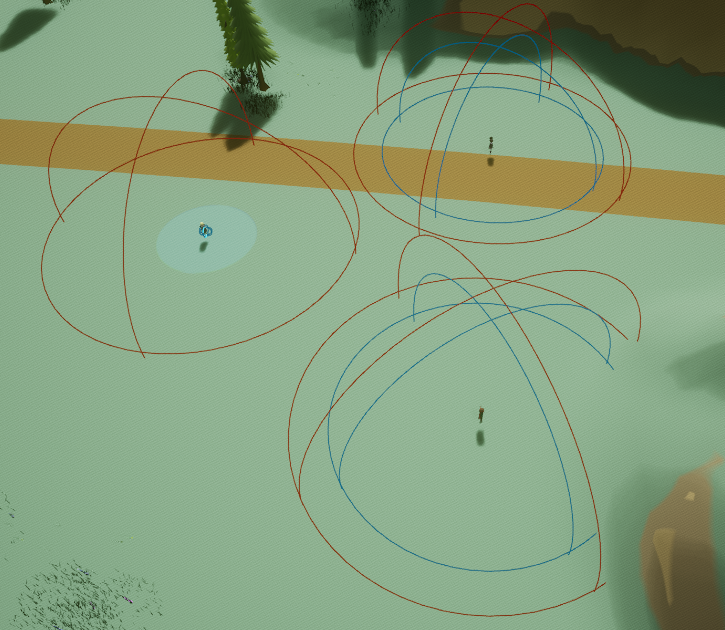

Three characters showing their vision and attack ranges

The outer rings are the vision range and the inner rings are the attack range

The Pawn component for each character is only responsible for interacting with other entities in the game environment and does not do any decision making on its own. This component is built using both blueprints and C++. We’ve found that blueprints are often simpler for interactions between Pawns and/or Actors, while code is nice for internal logic.

AI Controller

This component’s task is to aggregate the current AI and animation state for the character’s Pawn; it updates the state for each character, such as the character’s stats, skills earned, skills in use, current objective progress, and skill cooldowns. This AI Controller does not make any decisions on what the Pawn should do, but acts as a reference for how the Pawn should interact with its environment. This component is written fully in C++.


The Anima produces what we refer to as ‘Jobs’ for the AI Controller to share with the Pawn. The AI Controller provides the current state of the character and the desired task to the Anima, which then returns a vector of Jobs required to complete the task. An example of this is when the player tells a character to gather a resource such as wood from a tree. The player would simply click on the character and then click on a tree to harvest it. The Anima would produce the Jobs: move to the tree, chop the tree down, wait for the tree to fall, then gather the wood. This process of generating Job vectors by starting with the desired outcome has made it fairly simple to add new Jobs to the game, as we have built a collection of composable Jobs that can help accomplish each task. The Anima is a fully stateless component; it consumes the current request and state to produce a new Job vector without any previous knowledge. Because of this, each character will have the same decision making logic based on their state. Since the Anima conforms to an interface, in the future we can have multiple Anima to suit different types of characters. This component is written fully in C++.


This component is somewhat underused at this time. The Oracle is used by the Anima when the Anima has no particular tasks to work with. Currently the Oracle produces the Idle Job, which results in characters just staying put and showing an idle animation. In the future, the Oracle can be used to dictate what sort of idle animation should be shown based on the character’s surroundings. A stretch goal is to have idle interactions between characters, such as having conversations or looking at the scenery together. This component is written fully in C++.

User Interface

Since our game is a real-time strategy, it’s natural that our UI contains a lot of data and has a lot of interaction. The three main UI components are the Pawn Details, Caravan Details, and Settings menus.

The Pawn Details menu shows the information for the currently selected character. From here the player can buy new skills for the character, choose which action skills to use, and check out the various stats and metrics relating to the character. A challenge has been ensuring that the UI stays up to date with each character’s information, without continuous polling for updates. During combat, each character’s health can change quickly, and character stats will change upon gaining new skills and from influences such as their allies, enemies and status effects. Any of these events will trigger an update for the affected portion of the UI.

The Caravan Details menu shows a list of all of the Elders that have been rescued, and the accumulated benefits that the Elders provide. This menu is probably the least developed, as we currently only have one Elder to rescue. A future goal is to have numerous Elders scattered throughout the game that the player can befriend and learn from.

The Settings menu contains a few game settings such as anti-aliasing quality, shadow quality, and overall brightness. As we progress we want to add more settings and accessibility options.

To keep concerns separated between the UI and other game entities, we use a dispatcher component to aggregate interactions. This dispatcher is known to all game entities and is the arbiter for all UI updates and reads. An example of this is when the player buys a new skill for a character: The player first selects a character via the camera’s Selection Rectangle, which tells the camera to send the character’s information to the UI via the dispatcher. The dispatcher then reaches into its sub-components to perform the update. With the proper information displayed in the UI, the player can then select the skill they want to purchase and click the buy button. This skill purchase tells the camera to update the selected character with the new skills, and the dispatcher will also update the UI to reflect the changes.

Since we began using Unreal Engine, the architecture of the code and assets has changed quite a few times. As we get closer to an MVP version for user testing, we’re feeling confident that our game’s design will scale nicely as new features are added to Unreal.

A goal we have had over the past few months is to get a stub implementation of every game mechanic we can think of. We still need to work on aspects of story-telling and the game’s atmosphere in general, but we’re confident that we’ve tackled the hardest problems first… right?

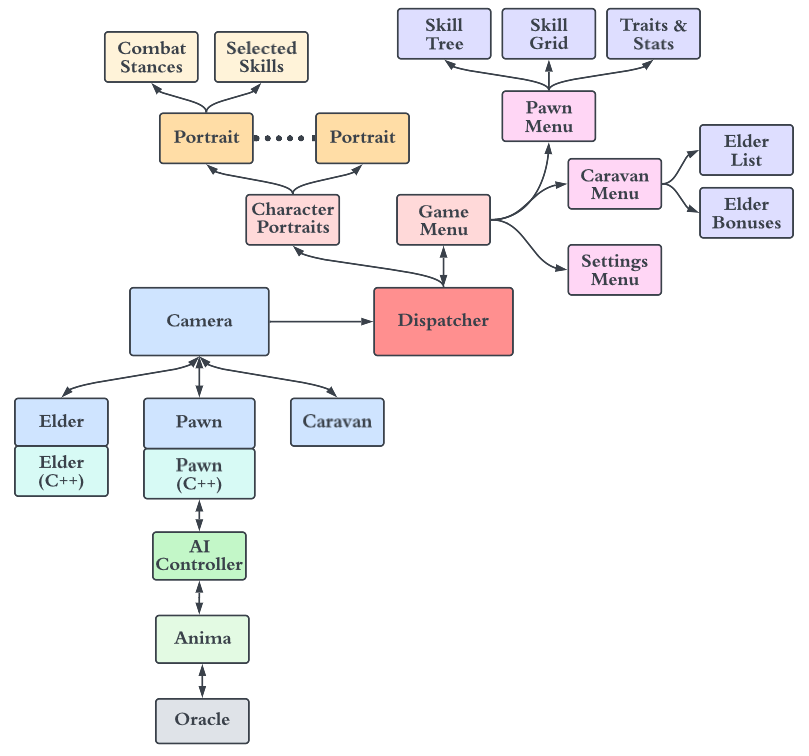

A high-level game components architecture diagram
